1000Ah Valve Regulated Gel Battery 1000Ah Lead Acid Battery

2V 1000Ah Valve Regulated Lead Acid Battery Backup Power Maintenance Free

Description of 2V 1000Ah Lead Acid Battery

GFM series Valve Regulated Lead Acid Battery is the latest products developed by using the latest technology. Valve Regulated Lead Acid Battery meet the YD/T 799-2010 standard of the Ministry of information industry of China, ISC87042.1999 of Japan and IEC60896-22004 standard. Valve Regulated Lead Acid Battery’s performance indexes have reached the leading level in China and enjoy the reputation in China. Valve Regulated Lead Acid Battery excels in low current/power discharge condition; widely provides energy for Light electric power supply, PV, wind energy and so on.

Specification

Valve Regulated Lead Acid Battery Characteristics Curve





2V 1000Ah Lead Acid Battery Technical Parameters

• Type: Valve Regulated Lead Acid Battery
• Capacity range: 100Ah-3000Ah
• Voltage class: 2V
• Float charge voltage: 2.25V-2.3V
• Equalized charge voltage: 2.4V-2.45V
• Long working life: 10 years
• Low self-discharge rate: ≤3%/month
• High sealed reaction efficiency: ≥99%
• Uniform and consistent floating charge voltage: ≤±50mV
• Compact structure and high specific energy
• Good performance in high current discharge


2V 1000Ah Lead Acid Battery Features

• Type: Valve Regulated Lead Acid Battery
• Single structure serialization: GFM series battery is a single structure with unique design, the maximum single capacity is 3000ah, users have a greater choice.
• System structure: GFM valve regulated lead-acid battery can be installed in cabinet or rack, or discharged on the ground. Heat dissipation space is reserved between units, which can effectively prevent the battery from thermal runaway.
• Smaller internal resistance and voltage drop, adapt to high power and high current discharge

Advantages of 2V 1000Ah Lead Acid Battery

• Type: Valve Regulated Lead Acid Battery
• SLA Sealed Lead Acid Battery: 10 years design life
• TLS patented technology, sealed and reliable
• Uniquely designed monoblock structure, complete series of models, greater choice of space
• Mature technology and stable operation
• Designed for high current and high power applications, high energy density
• Easy maintenance, low TCO cost
• High safety, reliability and stability

Application of 2V 1000Ah Lead Acid Battery

• Light electric power supply
• Small power station PS backup power, emergency lighting power
• Data center, UPS power supply system High power, high current discharge scenario
• High precision equipment backup power supply Emergency lighting, beacon lights

Compliant standards

• Type: Valve Regulated Lead Acid Battery
• IEC60896-2-1995
• TD/T 799-2010
• GB/T 19638.2－2005
• GB/T 22473-2008
• YD/T 1360-2005
• JISC 8704-2:1999
• Passed ISO9001.ISO14001, GB/T28001-2001, CE, TLC, CGC certificate

1000Ah valve regulated gel battery

2V valve regulated gel battery

1000Ah lead acid battery

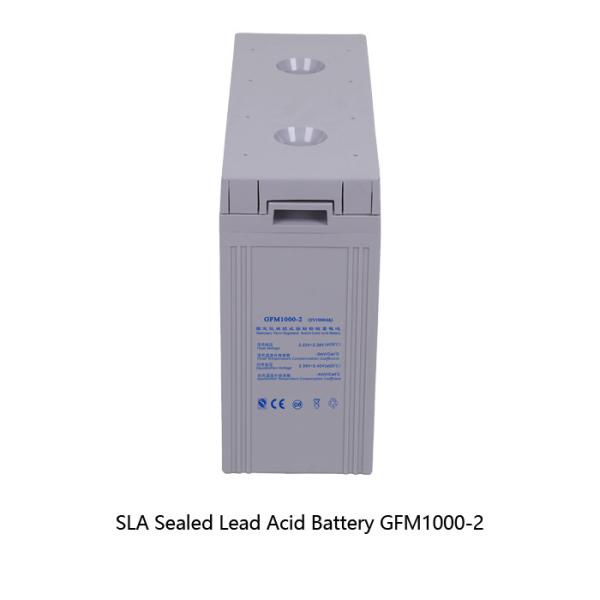

1000Ah Valve Regulated Gel Battery 1000Ah Lead Acid Battery Images
